Ryan Geraghty
[Product Designer]

MISFIT COMMAND

MISFIT COMMAND

Hybrid Smartwatch

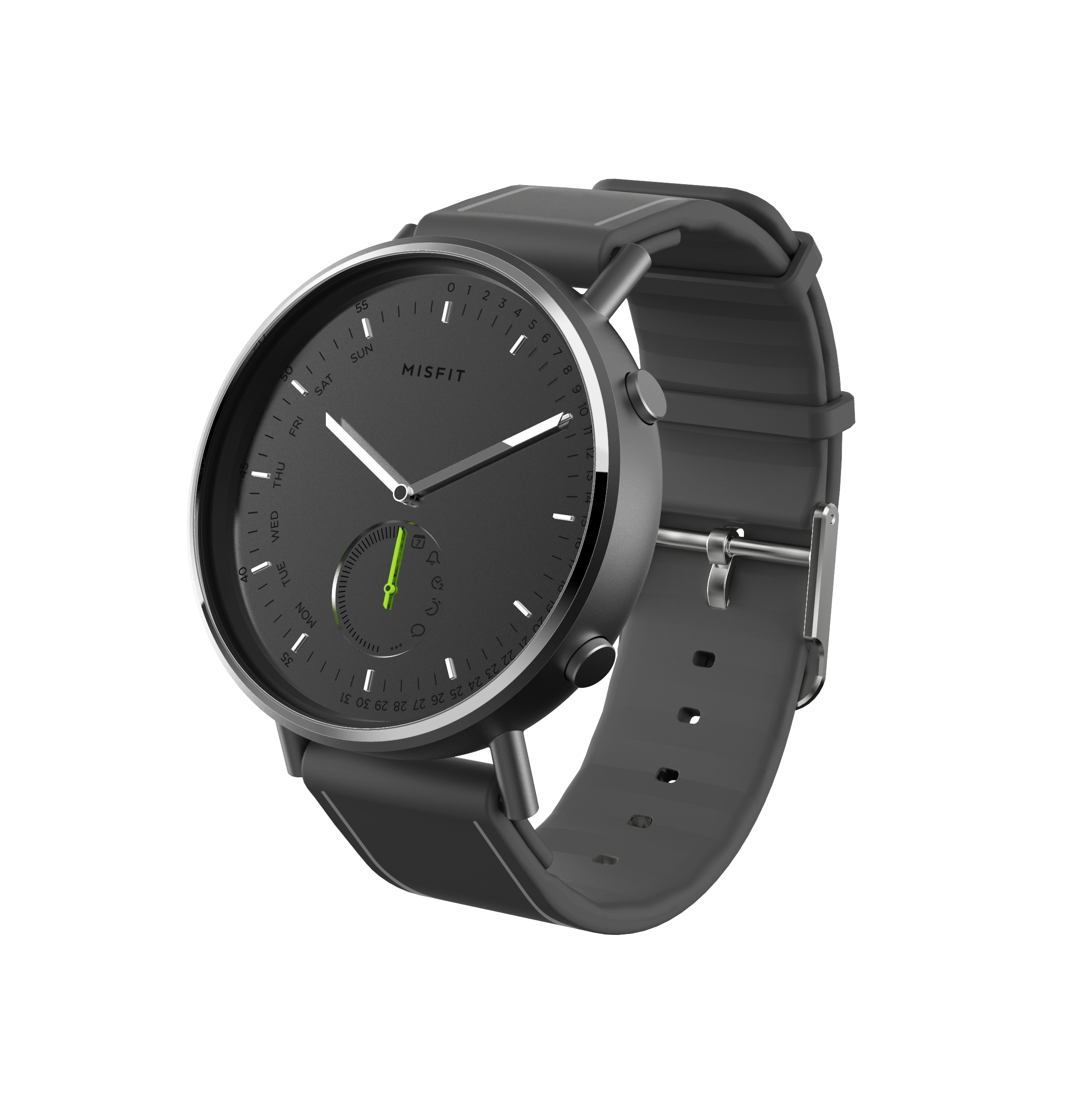

Mammoth_Hero_Black IP_Steel.png



Notable Contributions:

Dial, straps, case design, and sub-eye/pusher controls experience.

Product Focus:

Masculine aesthetic with an emphasis on clear communication of information.


Mammoth_Hero_Bracelet_Steel 2.png

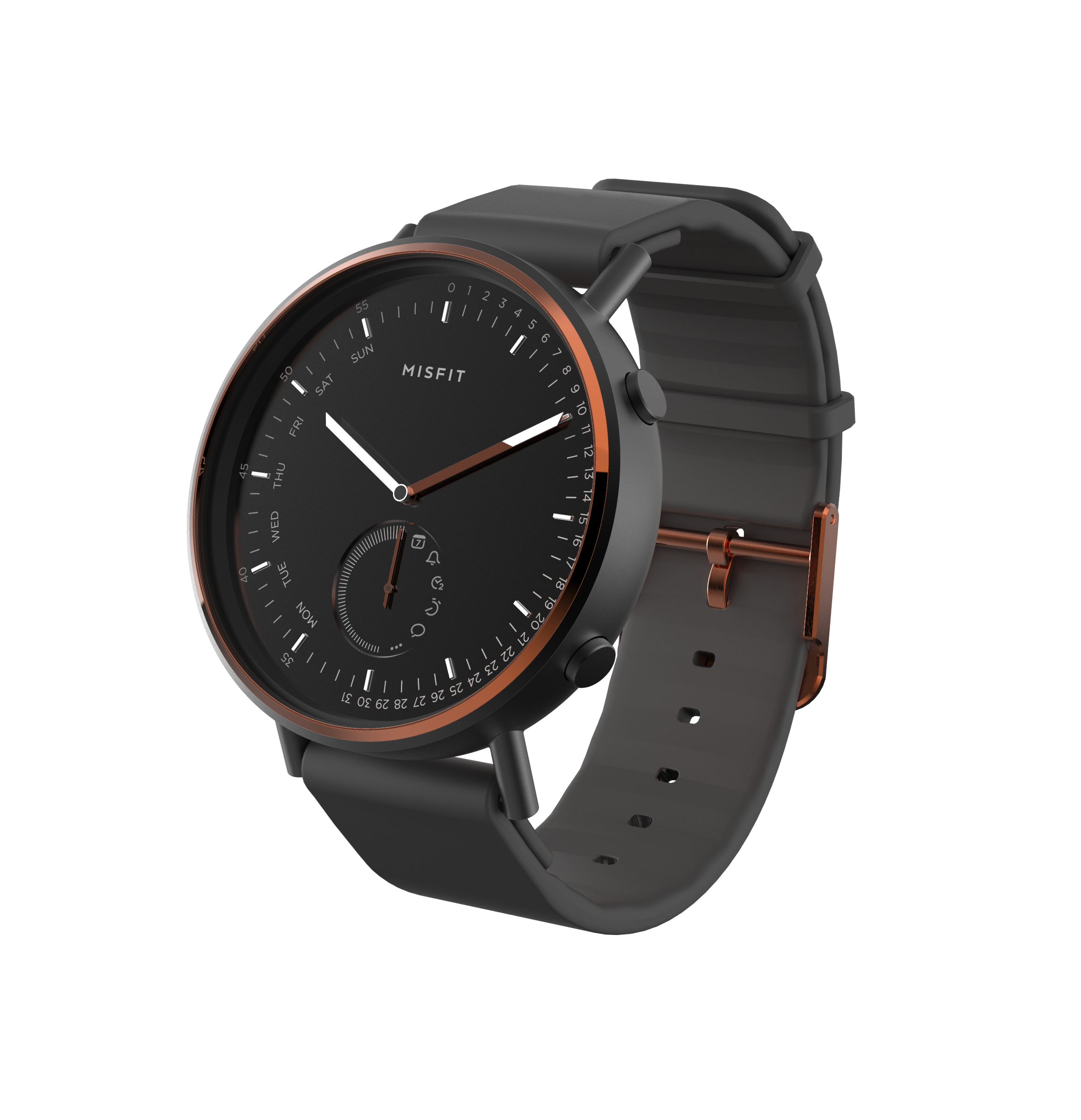

Mammoth_Hero_Black IP_Copper.png

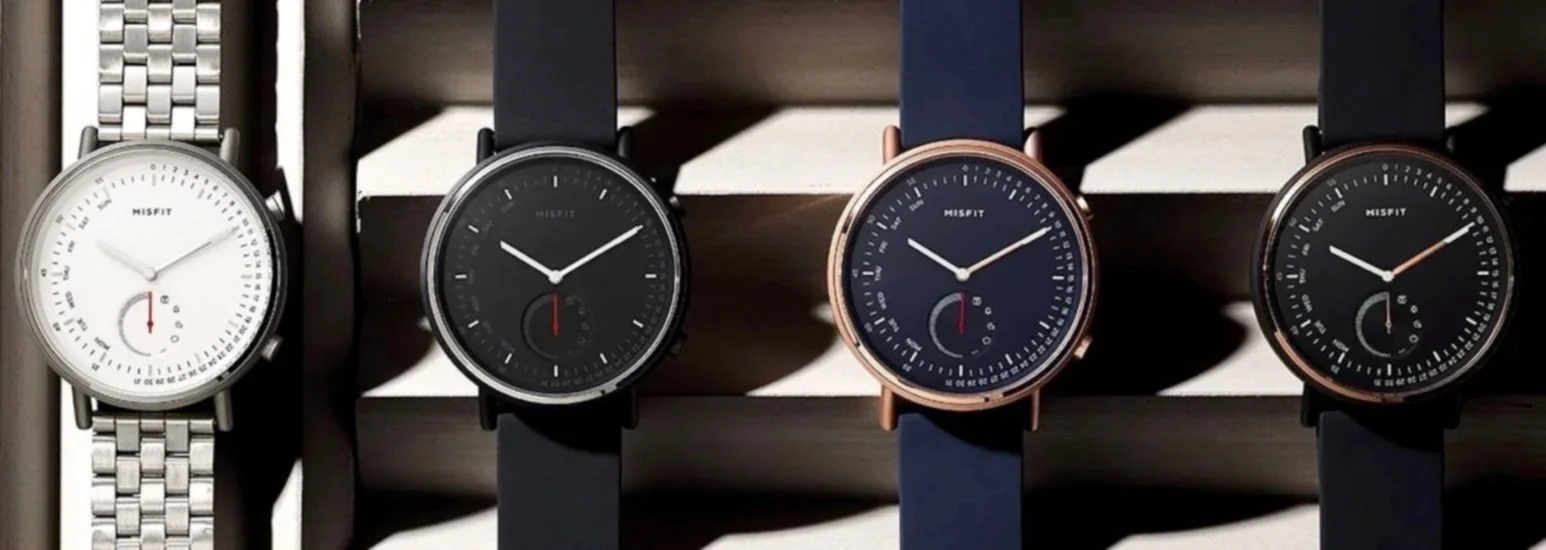

HARD COPPER

REFLECT/SPORT


MARITIME

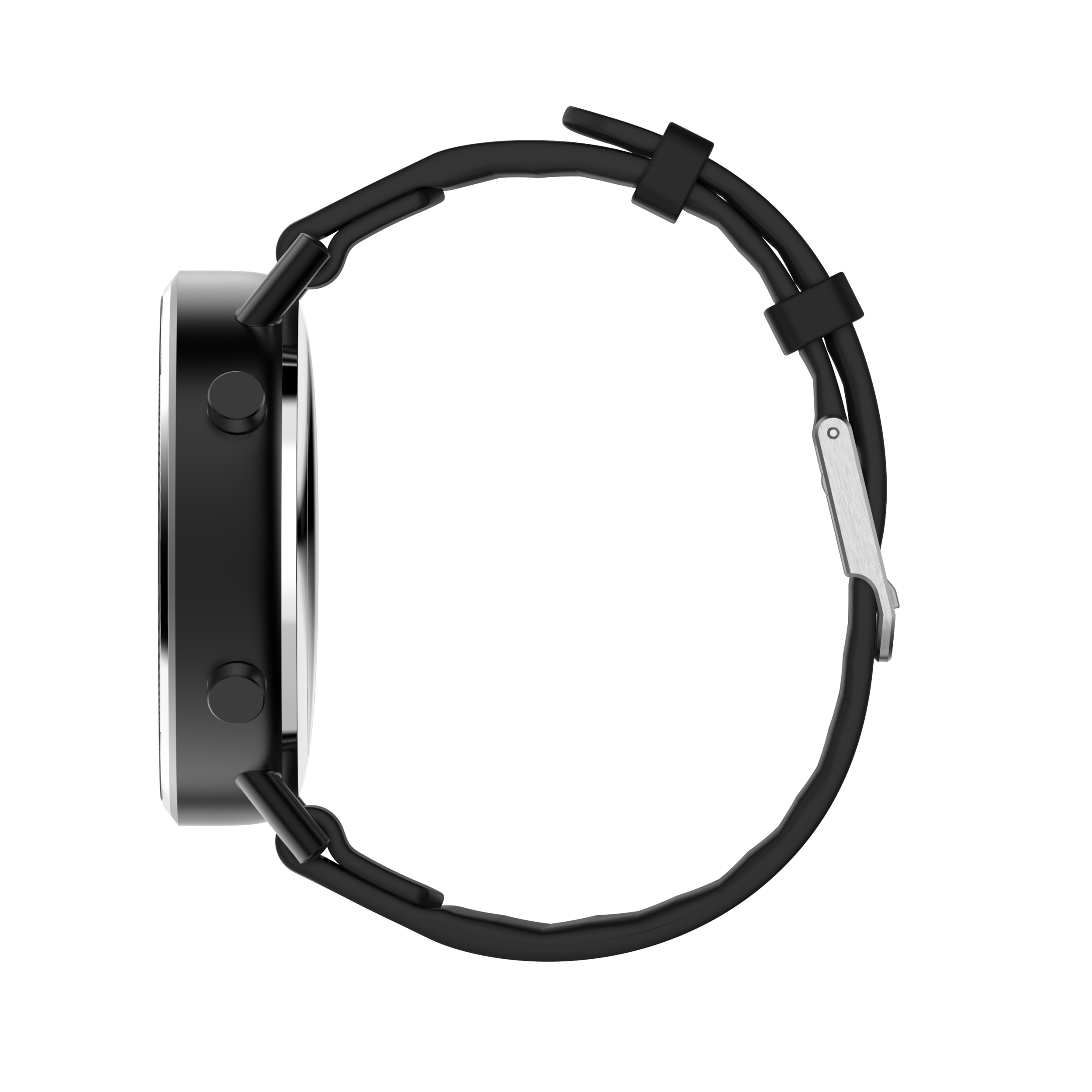

Mammoth_Side_Black IP_Steel.png

Informed Splits

The color and finish breaks on the body correspond to how Command is assembled and serve to highlight this process and the Misfit attitude towards honesty in design.

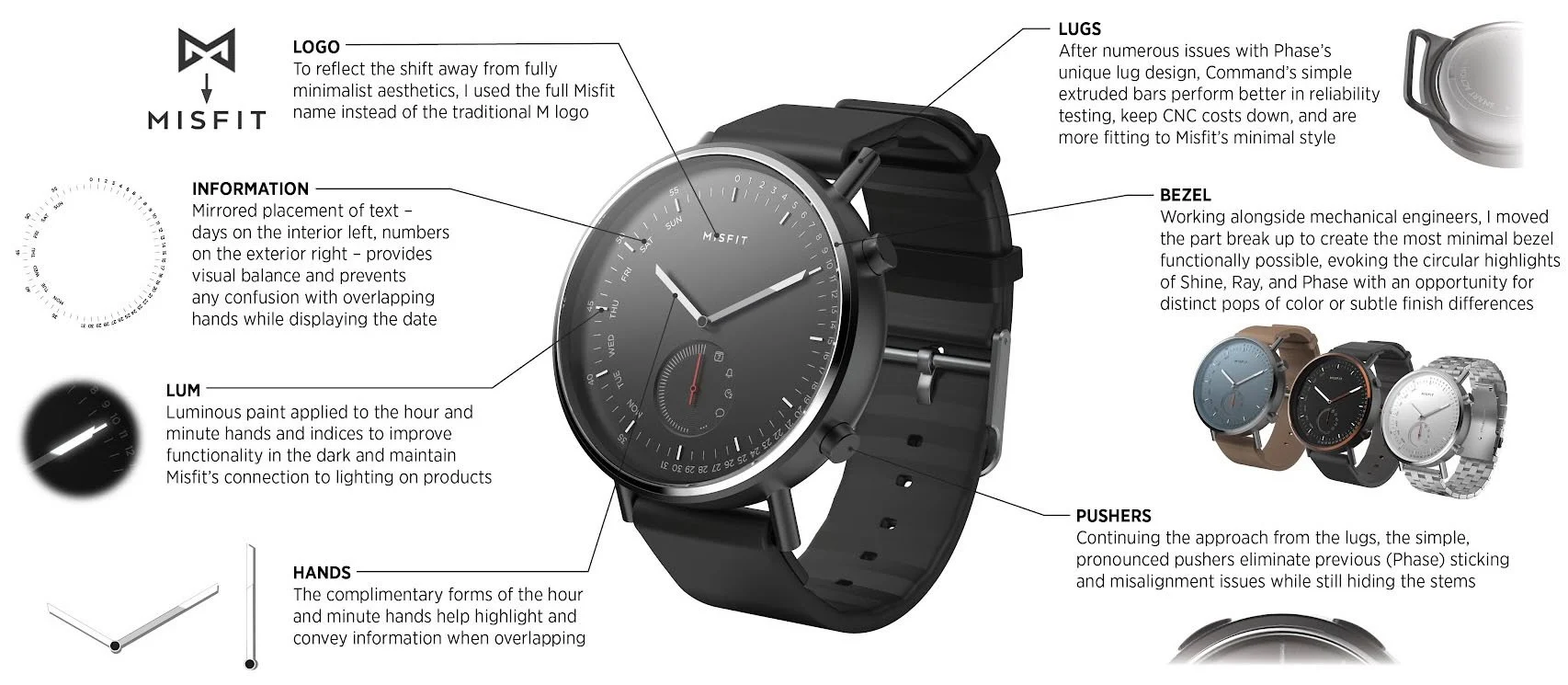

Dial Design

I aligned the numbers around the outer edge – used to communicate the day of the month – with the appropriate minute markers to avoid confusion. To balance the heavy amount of text on the right side of the dial, the days of the week are place on the left, interior side. This mirrored placement also prevents any confusion with overlapping hands while displaying the date.

SegmentsAsset 1@4x.png


UX SPEC

Command presented a unique UI challenge – balancing Misfit's minimal nature with the amount of information on Command's dial. For all +11 functions, I made sure each requires no more than two button presses to convey information or trigger an event.
